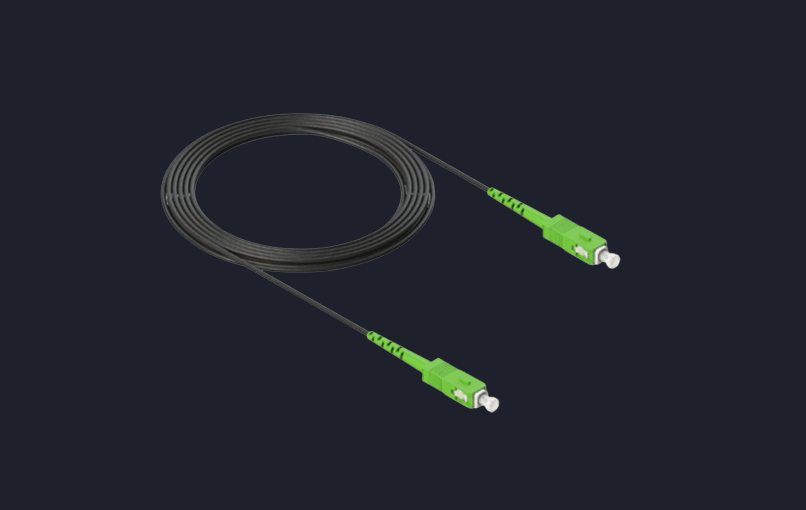

ConnectivitySimplex MDU Drop Fiber Patch Cord (OFNR)
Applications
- FTTH networks
- Backbone for Data Centers
- LAN networks
Features
- Custom length
- Ruggedized cable
- Indoor / Outdoor, OFNR rated
Specifications
| Mechanical Specifications | ||||||
| Connector | SC | FC | ST | LC | ||
| Nominal Cable Diameter | 2.0 mm (0.08 in) | 2.0 mm (0.08 in) | 2.0 mm (0.08 in) | 2.0 mm (0.08 in) | ||
| 3.0 mm (0.12 in) | 3.0 mm (0.12 in) | 3.0 mm (0.12 in) | 3.0 mm (0.12 in) | |||
| 4.8 mm (0.19 in) | - | - | - | |||
| Insertion Loss | ≤ 0.3 dB | |||||
| Return Loss | ≥ 45 dB (PC) | ≥ 50 dB (UPC) | ≥ 65 dB (APC) | |||
| Wavelengths | 1310 nm | 1550 nm | ||||
| Max. Attenuation | 0.5 dB/km | 0.5 dB/km | ||||
| Max. Tensile Strength | 300 N @ 2.0 mm, 400 N @ 3.0 mm, 900 N @ 4.8 mm | |||||
| Bend Radius - Installation | 20 times x cable O.D. | |||||
| Bend Radius - Operation | 10 times x cable O.D | |||||
| General Specifications | ||||
| Connector | ||||

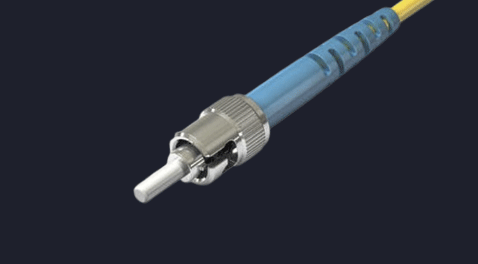

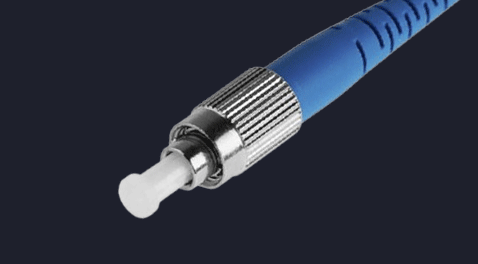

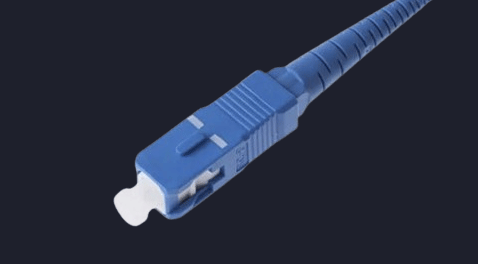

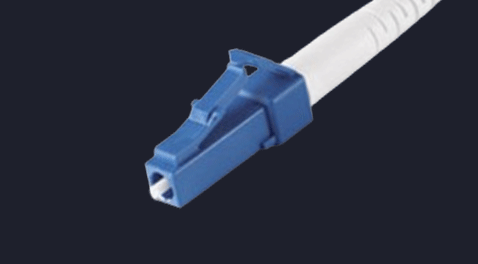

| Connector Type | SC | FC | ST | LC |
| 그림 | 그림 | 그림 | 그림 | |
| Connector Polishing | PC, UPC, APC | |||
| Ferrule Type | Ceramic | |||
| Ferrule Nominal Diameter | 2.5 mm | |||
| Standard Body Color | Blue (PC, UPC), Green (APC) | |||
| Boot Color | Blue (PC, UPC), Green (APC) | |||

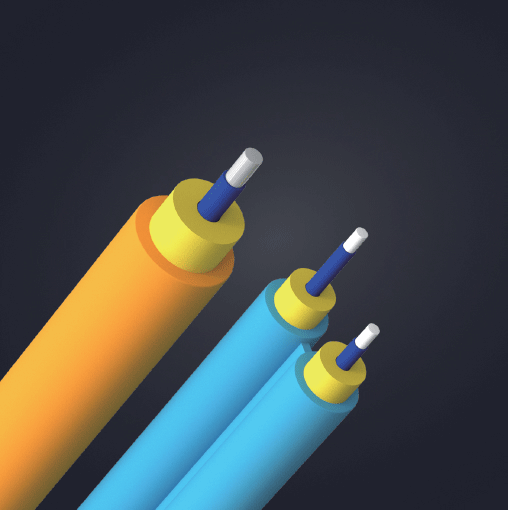

| Cable | |||
| Nominal Diameter | 2.0 mm (0.08 in) | 3.0 mm (0.12 in) | 4.8 mm (0.19 in) |
| Nominal Weight | 5 kg/km (3 lb/1,000 ft) | 10 kg/km (7 lb/1,000 ft) | 26 kg/km (18 lb/1,000 ft) |
| Strength Member | Aramid Yarn | ||
| Outer Jacket Material | Riser rated PVC with UV or Riser rated LSZH with UV (Production available according to customer requirements) | ||
| Tight Buffer Color | Blue or Natural (Proceed with Natural color unless the customer specifies otherwise) | ||
| Cable Jacket Color | Yellow or Orange or Black | ||
| 그림 | |||
| Environmental Conditions | |||
| Temperature Range - Installation | - 10°C to + 40°C ( 14°F to + 104°F) | ||
| Temperature Range - Storage | - 20°C to + 60°C (- 4°F to + 140°F) | ||
| Temperature Range - Operation | - 20°C to + 60°C (- 4°F to + 140°F) | ||
| Optical Characteristics (Single-Mode) before Connector Attachment | |||
| Fiber Category | OS2 | ||
| Wavelengths | 1310 nm | 1383 nm | 1550 nm |
| Max. Attenuation | 0.4 dB/km | 0.4 dB/km | 0.3 dB/km |
