Indoor Optical Fiber CableFlat ribbon fiber cable
Applications
- Riser and plenum installations
- Unrated bare ribbon fiber
- Multi-fiber links in data centers, SANs, and telecom hubs
Features
- Aramid strength members for durability
- Standard 12-fiber configuration; other options available
- Compatible with industry-standard termination solutions
- Bare ribbon fiber available
- Fan-Out Kits offered
Specifications
| Mechanical Specifications |
Max. Tensile Strength Long-term | 80 N (17.98 lbf) | |||
Max. Tensile Strength Short-term | 150 N (33.72 lbf) | |||
Crush Resistance | 1000 N / 100 mm | |||
Min. Bend Radius-Installation | 20 times x cable O.D. | |||
Min. Bend Radius-Operation | 10 times x cable O.D. | |||
|

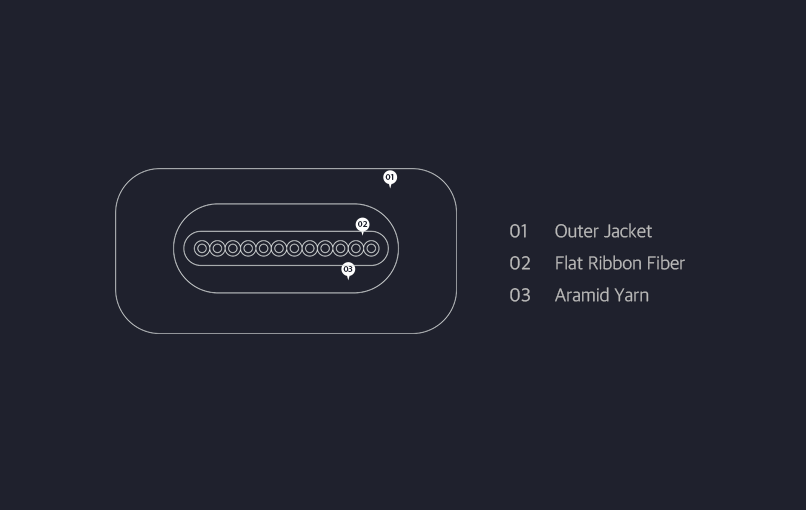

Cable Design |
Fiber Count | 4 | 6 | 8 | 12 |
Nominal Weight | ~6.5kg/km | ~6.6kg/km | ~7.8kg/km | ~7.9kg/km |
Nominal Outer Diameter | 2.3*3.7mm (0.09*0.15 inch) | 2.3*3.7mm (0.09*0.15 inch) | 2.3*4.8mm | 2.3*4.8mm (0.09*0.19 inch) |
Ribbon Count | 1 | |||
Outer Jacket Color | Yellow* @ Single-ModeFiber, Orange* @ Multi-ModeFiber | |||
Outer Jacket Material | PVC (OFNR or OFNP) ** | |||
|

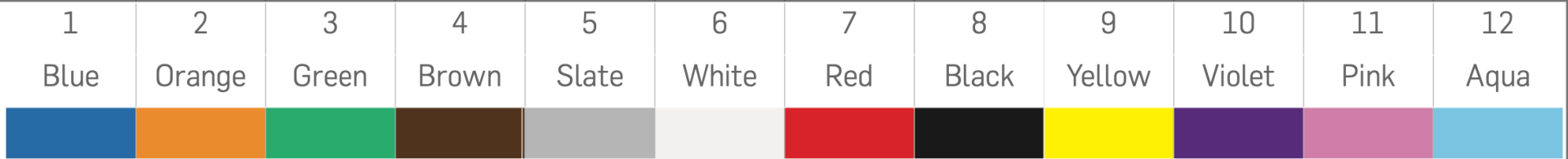

Fiber/Tight Buffer & Tube Coloring |
| Environmental Conditions |
Temperature Range, Installation | - 20℃ to + 60℃ (- 4℉ to 140℉) |
Temperature Range, Storage | - 20℃ to + 60℃ (- 4℉ to 140℉) |
Temperature Range, Operation | - 20℃ to + 60℃ (- 4℉ to 140℉) |
| Optical Characteristics (Single-Mode) |
Fiber Category | OS2 (G657A1, G657A2) |
Max. Attenuation | 0.5/0.4 dB/km |
Wavelengths | 1310nm/1550nm |
| Optical Characteristics (Multi-Mode) |
Fiber Category | OM1 | OM2 | OM3 | OM4 | OM5 |
Wavelengths | 850 / 1300nm | ||||
Max. Attenuation | 3.5 / 1.5 dB / km | ||||
