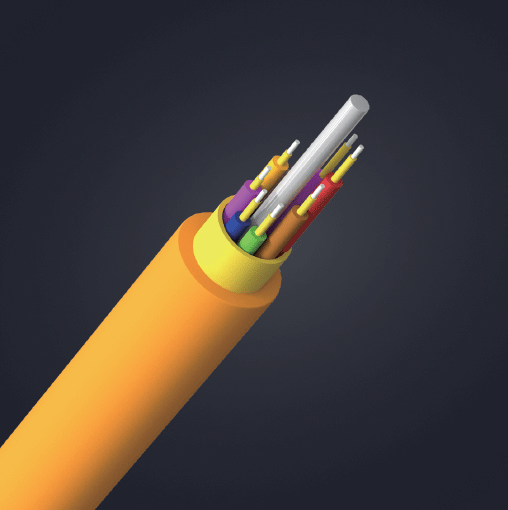

Indoor Optical Fiber CableBreakout Cable
Applications
- Local area networks
- Indoor or outdoor application
- Distribution application
- Multiple locations such as wiring racks and closets
- Backbone & computer room cabling
Features
- Standard fiber count: 2~12 core
- Great flexibility and mechanical protection of the optical fibers
- Rugged & high performance
- LSZH, OFNR, OFNP rated
Specifications
| Fiber Count | Buffer Diameter(μm) | Subunit OD(mm) | Outer Diameter(mm) | Weight(km/kg) |
| 2 | 900 | 2.0 | 7.5 | 50 |
| 4 | 7.7 | 55 | ||
| 6 | 8.0 | 65 | ||
| 8 | 9.5 | 85 | ||
| 12 | 10.5 | 95 |
Characteristics
| Characteristics | Specifications | |
| Max. Tensile Load | 600N~1,200N | |
| Crush Resistance | 35N/cm | |
| Bending Radius | Installation | 20 times of cable OD |
| Operation | 10 times of cable OD | |
| Temperature Range | Installation | -10℃ ~ + 70℃ |
| Operation | -20℃ ~ + 70℃ | |
